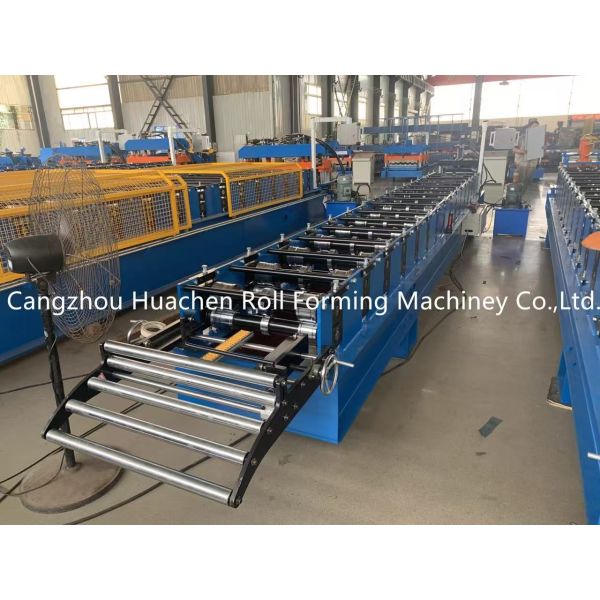

High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive

Brand Name : HC

Model Number : HC41-360-560

Certification : CE

Place of Origin : China

MOQ : 1set

Payment Terms : L/C,T/T

Supply Ability : 20 sets/month

Delivery Time : 25-30days

Packaging Details : Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.

Material Type : PPGI/GI

Material Thickness : 0.3-0.6mm

Material Width : 560mm

Roller Stations : 16Stations

Roller & Shaft Material : 45# Steel Quenching and Plating

Diameter of Shaft : Φ70mm

Cutter Material : CR12

Drive Type : Chain Drive

Speed : 4m/min

Total Power : 5.5+5.5KW

Voltage : 380V 50Hz 3Phases(can be customized)

Contact Now

Blue Color Roofing Sheets Manufacturing Machine, Roll Forming Line High Speed

This roofing tile machine is a specialized roll forming machine for steel sheet cold-form industries. It can continuously form steel sheet into roofing tiles according to customer requirements and automatically cut to length. This equipment offers high forming speed, low noise, stable transmission, easy operation, and excellent appearance.

Main Technical Parameters

Parameter	Specification
Material Type	PPGI/GI
Thickness	0.3-0.6mm
Width	560mm
Roller Stations	16 Stations
Roller & Shaft Material	45# Steel Quenching and Plating
Diameter of Shaft	Φ70mm
Cutter Material	CR12
Drive Type	Chain Drive
Speed	4m/min
Total Power	5.5+5.5KW
Voltage	380V 50Hz 3Phases (can be customized)

Component & Technical Parameters

5T Manual Decoiler

High Speed 15-20m/min Roofing Sheet Roll Forming Machine with 16 Stations and Chain Drive

This component supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Includes brake device to prevent machine damage from impact during operation.

Feeding Table & Pre-Cutter

Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

Shaft & Roller

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, and rust-resistant. Will not leave scratches on sheets during operation.

Hydraulic Pump Station

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.

Touch Screen Control Cabinet

Features automatic and manual modes. Allows setting of unit length and quantity on touchscreen. Simple and easy to operate. Electrical components: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

Pressing Section & Cutter

Blade material is CR12 with high strength, excellent hardenability, and superior wear resistance.

Output Table

Collects formed products. Bracket includes rollers to facilitate product forwarding without scratching.

Spare Parts

Chains: 2 Sets
Solenoid Valve: 1 Set
Travel Switch: 2 Sets
Open-End Wrenches: 2 Sets
Hexagon Wrench: 2 Sets
Counter: 1 Set
Wrench: 2 Sets
Oil Seals: 1 Set

Our Services

We provide replacement of damaged or broken parts free of charge during the first year of machine operation. Warranty does not cover misuse by buyer or man-made operational problems.

Frequently Asked Questions

Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and continuously improve our machines accordingly.
